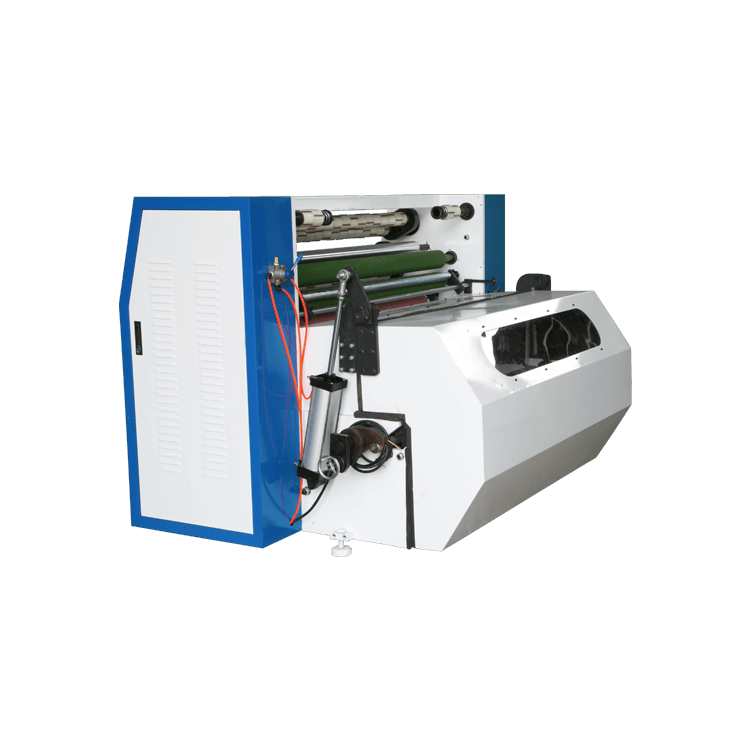

Introduction of technical parameters and characteristics of belt Slitter
1) Each part of the belt slitter is controlled by a centralized panel, which is easy to operate.
2) Feeding mode: feeding at the back, convenient for feeding and adjusting the position of raw materials; bow shaped unfolding wheel: the unfolding wheel is a unique bow shaped design. Completely eliminate the wrinkling phenomenon of the tape in the process of unfolding or feeding.
3) Coiling mode: double axis central coiling, four axis automatic exchange operation; simple operation, high efficiency.
4) Drive part: AC motor drive, frequency control; drive shaft adopts Teflon embossing shaft, which can prevent glue.
5) Length control: three section table control, coiling process control, inductive conversion length, accurate length.
6) Brake device: pneumatic brake is adopted, material tension is controlled stably, brake adjustment is convenient, and winding effect is enhanced.
7) Slitting tool: Industrial straight tool. (air knife and round knife are optional)
8) Hydraulic feeding mechanism, can quickly feed, reduce labor intensity. (optional)
9) Automatic labeling mechanism, improve efficiency. (optional)
10) The discharge mechanism is equipped with a partition cover to reduce the noise when the material is rolled out, so as to achieve the ideal working environment. (optional)
Introduction to technical parameters of belt Slitter:
Effective width 1000mm / 1300mm
******Coiling diameter 120mm (can be increased to 200mm)
******Unwinding diameter 600mm
Strip width 12mm-1300mm
Mechanical speed 0-180m / min
Inner diameter of paper tube 25.4-76.2mm
Main motor 5HP
